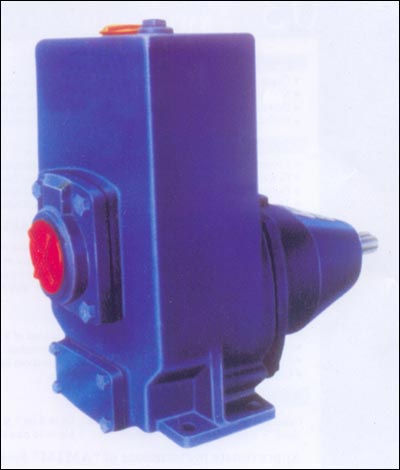

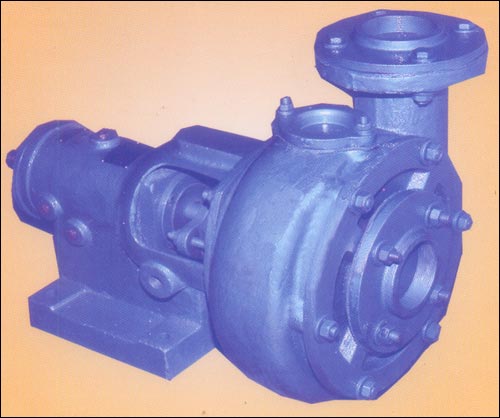

NON - CLOG PUMP |
|
|
|
|
|
NON CLOG PUMP are horizontal type end suction centrifugal pumps for handling heavily contaminated or muddy liquids with solids in suspension such as mash, pulps, beet shreads, sewage etc. The impeller has an axial intet. With a diameter equal to the internal width of the suction branch of the pump. The impeller hub is situated on the stuffing box end to ensure solids to be handled without difficulty. The impeller is of a double dusted, vaneless design and runs in an axially symmetrical pump casing . The size of the particles that can be handled depends on the cross sectional area of the impeller ducts |
| IMPELLER |
- Cast Iron/SS-3 /6, SS-304/ Bronze eras per request |
| PUMP CASING |
- Cast iron/SS-316, SS-304 Bronze or as per request |
| SHAFT |
- EN-8/SS-316, SS-304 or as per request |
| MECHANICAL SEAL |
- Carbon Vs. Ceramic/lc Vs Tc with NBR/Viton/PTFE |
- Effluent treatment, Sewage Plants, Dyes and Intermediate Industries.
- Dewatering Docks, Ports, Vessels, Swamps, Basements, Trench., Construction sites. Swimming Pools etc.
- Pumping petroleum products like L.D.O., Diesel, Petrol Kerosene etc.
- Transfer of Chemicals. Solvents, Effluents, Hot Water, Chilled Water. Condensate etc.
MARINE APPLICATION
- Slurry Handling
- Transfer of Chemicals & solvents
- Graded casting & ON-8/SS-316/SS-410 Shaft increase service life.
- Minimum need for inspection and maintenance because greased for life, external lubrication.
- Drive options Electric motor coupled, Belt drive versions or by petrol/diesel engine.
- Perfect seal* assured by high quality mechanical seal which can not run dry because of in-pump Oil reservoir.
- Perfect self priming action with maximum suction head of 8 meters.
- Back Pullout design, simplifies inspection and maintenance.
- Impellers with wider flow passage avoid clogging and can handle solids up to 30 mm diameter.
- Compact. light weight and yet rugged construction.
RANGE
| Capacity |
- Up 200 M'/Hr |
| Head |
- Up 10 50 Mt |
| Suction Head |
- Up to 8 mtrs |
| Solids |
- Up to 30 mm Din |
|
|
|
|
