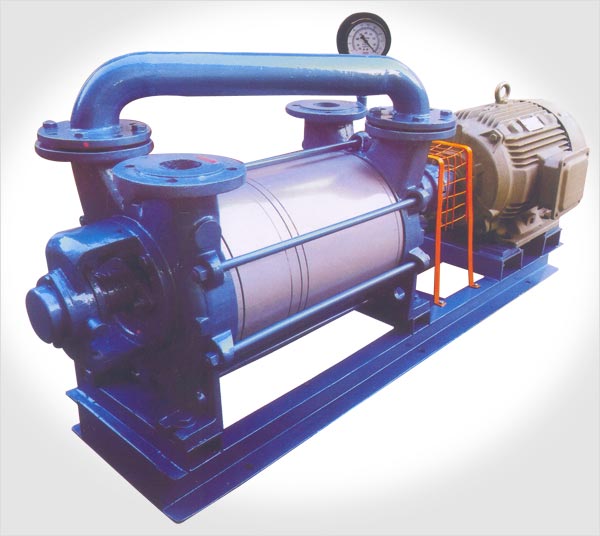

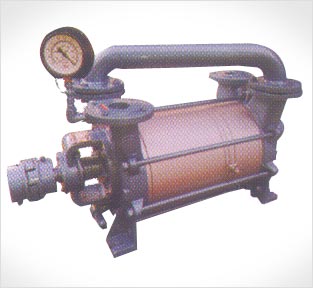

WATER RING VACUUM PUMPS are best suited for Pharmaceutical, Food, Confectionery, Petro-chemicals, Textiles and Plastic Industries, Paper and Sugar Mills, Cement, Metallurgical Laboratories and Furnaces, Refrigeration Plants, Distillaries, Pneumatic Conveying, Cigarrette, Tiles and Ceramics Industries etc. These pumps are approved for government semi government and private industrial projects all over India.
Generally, the main casing & almost all the components are fabricated from C.I. Except the main shaft, which is of MS/EN-8. However, it is also offered in various combinations of resistant materials for specific applications. Details are supplied on demand.
WATER RING VACUUM PUMPS combine in them the two - fold features of suction and pressure and hence the same unit can be employed for either function. When used as a Vacuum Pump they can create Vacuum upto 710 mm UG.(28" HG) provided the temperature of the sealant water is below 30 degree & barometric pressure at site is 30 Inches of Hg. When used as a Compressor, they can deliver pure and oil free compressed air with maximum pressure upto 1.5 kg/cm2
DIMENSIONS |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
310 |
120 |
250 |
19 |
25 |
90 |
40 |
110 |
55 |
200 |
4x10 |
25 |
75 |
56 |
340 |
120 |
250 |
19 |
25 |
90 |
40 |
110 |
55 |
200 |
4x14 |
32 |
110 |
82 |
365 |
130 |
270 |
19 |
35 |
110 |
40 |
120 |
55 |
230 |
4x14 |
40 |
110 |
82 |
410 |
130 |
270 |
19 |
40 |
110 |
40 |
120 |
70 |
230 |
4x15 |
60 |
150 |
120 |
450 |
130 |
470 |
19 |
40 |
110 |
40 |
120 |
70 |
230 |
4x15 |
60 |
150 |
120 |
630 |
200 |
470 |
32 |
60 |
150 |
55 |
220 |
70 |
300 |
4x18 |
80 |
190 |
150 |
665 |
200 |
470 |
32 |
60 |
150 |
55 |
220 |
70 |
300 |
4x18 |
80 |
190 |
150 |
760 |
200 |
470 |
32 |
80 |
190 |
70 |
220 |
130 |
300 |
4x18 |
125 |
240 |
200 |
830 |
200 |
470 |
32 |
80 |
190 |
70 |
220 |
200 |
300 |
4x18 |
125 |
240 |
200 |
895 |
290 |
700 |
40 |
125 |
240 |
100 |
320 |
210 |
400 |
4x18 |
125 |
240 |
200 |
1035 |
290 |
700 |
40 |
125 |
240 |
100 |
320 |
290 |
400 |
4x18 |
200 |
320 |
280 |
1200 |
370 |
850 |
65 |
200 |
320 |
110 |
420 |
370 |
620 |
|
|
|
|
1350 |
370 |
850 |
65 |
200 |
320 |
110 |
420 |
420 |
620 |
|
|
|
|
NO |

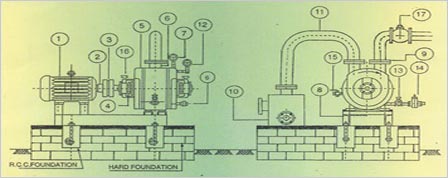

DESCRIPTION |
NO |
DESCRIPTION |
NO |
DESCRIPTION |
NO |
DESCRIPTION |
1 |
MOTOR |
5 |
CASING COVER |
9 |
MATCHING FLANGE |
13 |
WHEEL VALVE |
2 |
COUPLING |
6 |
CASING |
10 |
SILENCER |
14 |
STOP CLOCK |
3 |
COUPLING LINK |
7 |
PRESSURE GAUGE |
11 |
SILENCER BLEND |
15 |
AIR CLOCK FOR HIGH VACUUM |
4 |
RUBBER RING |
8 |
BASE FRAME |
12 |
VACUUM GAUGE |
16 |
GREASE CUP |
|
|
|
|
|
|
17 |
N.R VALVE |
SPECIFICATION |
MODEL |
MOTOR HP REQD |
PUMP SPEED RPM |
SUCTION CAPACITY CMH |
SEALING WATER REQD LPM |
APPX. WT. BARE PUMP |
PVW -10 |
1 |
2850 |
8 |
3 |
|
PVW -20 |
2 |
2850 |
30 |
4 |
|
PVW -30 |
3 |
2850 |
50 |
7 |
34 |
PVW -50 |
5 |
2850 |
80 |
10 |
42 |
PVW -75 |
7.5 |
2850 |
120 |
14 |
50 |
PVW -100 |
7.5 |
1450 |
160 |
16 |
170 |
PVW -150 |
10 |
1450 |
220 |
20 |
185 |
PVW -200 |
15 |
1450 |
330 |
30 |
220 |
PVW -250 |
20 |
1450 |
440 |
40 |
245 |
PVW -300 |
30 |
980 |
720 |
60 |
495 |
PVW -400 |
40 |
980 |
1080 |
100 |
530 |
PVW -650 |
75 |
725 |
1500 |
150 |
910 |
PVW -900 |
100 |
725 |
2025 |
200 |
1080 |
